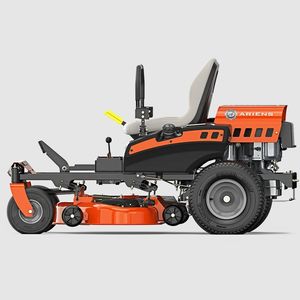

The APEX powers through the toughest mowing environments with the strength of professional engineering and the comfort you expect from an Ariens. As a residential zero turn, the APEX is in a class by itself with intuitive controls for precision performance.
The fully tubular steel frame rails are strong and more resistant to stresses to support loads of the machine with unprecedented strength and stability.
The thick 10-gauge steel deck is welded together for superior strength, durability and impact resistance.
The self-adjusting belt keeps the tension constant to maximize belt life, minimize wear and maintain a consistent, quality cut.
Featuring a 52” fabricated deck that’s 5½” deep and made of 10-gauge steel
Powerful 23 hp/725 cc Kohler 7000 V-Twin engine
Fully tubular steel frame, Self-adjusting belt technology, High-Back Padded Seat and armrests, Foot-operated deck lift
GROUND SPEED FORWARD (MPH/KPH)
8.00 mph / 12.80 kph
GROUND SPEED REVERSE (MPH/KPH)
4.00 mph
FUEL CAPACITY (GAL/LTR)
5.10 gal / 19.20 ltr
SPINDLE MATERIAL
Forged Aluminum
SPINDLE SHAFT
Forged Steel
DECK ENGAGEMENT
Electric Ogura
DECK LIFT SYSTEM
Foot Operated
WEIGHT (LB/KG)
850.00 lb / 385.50 kg
WHEELS FRONT
13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 15.2 cm)
WHEELS REAR
22.0 x 10.5 in - 12.0 in (55.8 x 26.6 cm - 30.4 cm)
