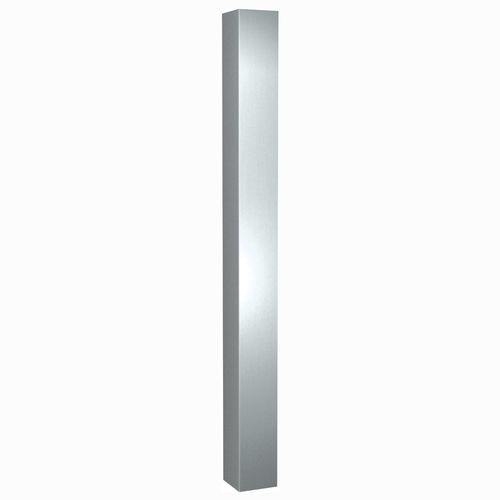

Stainless steel wall protection 0533 SERIES

corner

Corner Guards come in sizes up to max length of 10 feet (120″ [3048 mm]) for one (1) piece as specified (L) if not, 4 feet (48″ [1219 mm]) and are ideal for any application where you need the elegance and durability of stainless steel. Multiple Sizes and Mounting Options available: 0533-48 – 1/8” Radius, Adhesive Mounting – 48” High 0533-1 – SM Corner Guard with Beveled Edge Legs 0533-2 – SM Corner Guard with Mounting Holes & Beveled Edge Legs 0533-3 – SM Corner Guard with Flat Edge Legs 0533-4 – SM Corner Guard with Mounting Holes & Flat Edge Legs FEATURES •18 gauge or 16 gauge •Beveled Edge or Straight Edge legs •With or Without Mounting Holes •Optional Adhesive Mounting (adhesive by others) DIMENSIONS 0533-48 – 4-1/4″ W x 48″ L (108 x 108 x 1219 mm) 0533-40 – 4-1/4″ W x 40″ L (108 x 108 x 1016 mm) 0533-1-1 •3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm) •16 Ga., Beveled Edge Legs, for Adhesive Mtg. 0533-1-2 •3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm) •18 Ga., Beveled Edge Legs, for Adhesive Mtg. 0533-2-1 •3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm) •16 Ga., Beveled Edge Legs, with Mtg. Holes 0533-2-2 •3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm) •18 Ga., Beveled Edge Legs, with Mtg. Holes 0533-3-1 •3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm) •16 Ga., Straight Edge Legs, for Adhesive Mtg. 0533-3-2 •3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm) •18 Ga., Straight Edge Legs, for Adhesive Mtg. 0533-4-1 •3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm) •16 Ga., Straight Edge Legs, with Mtg. Holes 0533-4-2 •3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm) •18 Ga., Straight Edge Legs, with Mtg. Holes
