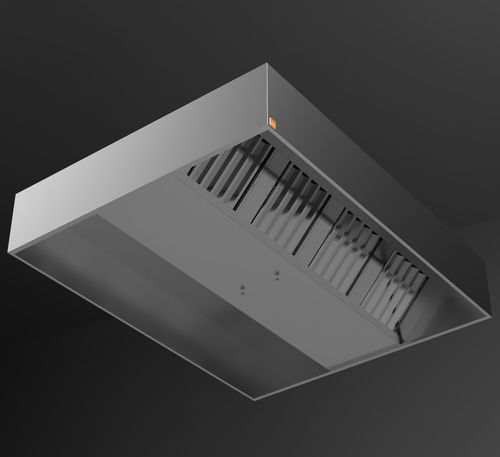

Wall-mounted range hood Eco R Monobloc

ceiling-mountedfor commercial kitchenducted

Hood ECO “R” MONOBLOC, built in all its parts of stainless steel with fine polished finish, being one of the most economical and competitive in the market and offering at the same time a high quality. Bell shape specially studied to give the whole maximum rigidity, with the minimum height to maintain, according to regulations, the filters at an angle of inclination between 45º and 60º on the horizontal. Its sides and the front are straight around the perimeter remaining at the same height. It has a new fastening system that facilitates its installation, making lateral displacement possible, until the perfect wall anchor is achieved. The assembly of all the visible pieces of the bell is done by means of bolts welded on the inside, thus giving the possibility of disassembling the assembly if necessary (to enter it by reduced steps or to expand it) and a great finish, as no rivets or screws are visible. The MONOBLOC hot version is equipped with an integrated fan and motor; However as an option, possibility of installing a 400º/2H fan with Applus certification. Designed to incorporate 490x490x50 filters (Not included as standard) Reduction of up to 80% in energy consumption (depending on kitchen use), installing our exclusive automatic flow regulation system (ACC).
