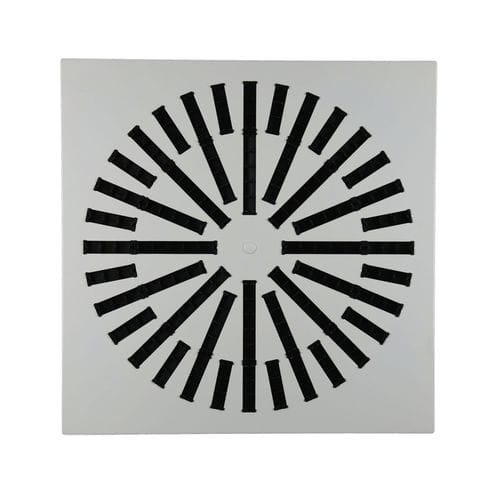

Adjustable of fixed square diffuser enabling swirl air jet.
Ceiling-mounted.
Rapid temperature balancing.
Designed for locations requiring high mixing rate under a low ceiling height.
SF 785 et 775 : Adjustable diffusion.
SF 786 : Fixed diffusion.
Construction :
Punched steel plate body.
Adjustable polypropylene deflectors (excepted SF 786).
Finish :
Front panel epoxy paint RAL 9010 white 85% or paint finish from RAL colour chart.
Deflectors black RAL 9005 (excepted SF 786).
Dimensions SF 785 and SF 775 :
Dimensions range from 400 x 400 to 825 x 825 mm.
600 x 600 mm dimensions ideal for suspended ceiling panels.
Dimensions SF 786 : Single size available: 600 x 600 mm (suited to standard ceiling panels).
Attachment :
F0 : concealed screw attachment on the neck of the diffuser.
F7 : visible attachment with screw and bridge.
Attachment to concrete ceiling using brackets on the plenum.
Accessories :
RE connection plenum with side branch connection.
RT connection plenum with top branch connection.
Built-in flow splitter.
Available in basic version or insulated on 2 or 5 sides.
USE
• Air supply.
• Adjustable diffusion enabling swirl air jet.
• Rapid temperature balancing.
• Designed for locations requiring high mixing rate under a low
ceiling height.
• Ceiling-mounted.
• 600 x 600 dimensions suited to standard suspended ceilings.
CONSTRUCTION
• Punched steel plate body.
• Adjustable polypropylene deflectors.
FINISH
• Front panel epoxy paint RAL 9010 white 85%.
• Deflectors black RAL 9005.
• Paint finish from RAL colour chart. View the list of available
colours in the appendix.
