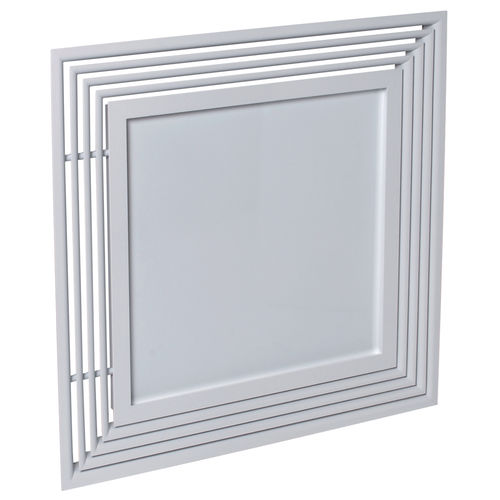

Ceiling air diffuser ALD 610K

squareslot

Air supply diffuser with built-in return. Filter on return air accessible on front. Fitted in Tbar or Fine-Line suspended ceiling systems (600 x 600 or 675 x 675 mm). Suited to central air management systems (ducted fan coils). Fixed diffusion in four directions, with 1-4 slots. Specific double plenum with aligned air supply and discharge connections – Ø 250 connection. Heating and air conditioning systems. Central plate on return channel optionally fitted with filter (in this case, the central core opens). USE • Air supply or exhaust. • Fixed horizontal 4-direction diffusion with 1, 2, 3, or 4 slots. • Exhaust version with filter holder and opening core for easy access to filter. • Ceiling diffuser for installation in replacement of a standard 600 x 600 mm or 675 x 675 mm suspended ceiling panel (T frame). • Possible to add a filter on the exhaust diffuser to replace that of the ducted convector fan for example. CONSTRUCTION • Extruded aluminium body and deflectors. • Steel central plate. Note: the central plate may be replaced by a suspended ceiling panel cut out to the same format as the plate for a more seamless finish. • Exhaust model with filter holder and opening central core for easy access to filter. • Galvanised steel connection plenum with side connection (RE) or top connection (RT), simple or insulated. FINISH • Aluminium with epoxy paint finish, RAL 9010 white. • Paint finish from RAL colour chart. View the list of available colours in the appendix. ATTACHMENT • Concealed attachment of diffuser to plenum using non-removable clips. • Attachment to concrete ceiling using brackets on the plenum.
