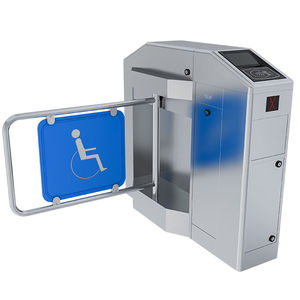

Motorized One Direction Swing Gates are provides an alternative to regulate pedestrian traffic. Thanks to its compact design and 90 cm arm length which is compatible with international wheelchair standards, SWG-15 is an ideal solution to provide controlled passage for VIP and physically handicapped people.
Swing Gates are applicable in shopping malls, supermarkets, fitness/wellness centers with its aesthetic and user friendly design.
Material -
Main Body: 304 - Stainless Steel ( Ops. 316 )
Arm: Aluminum
Rotor Systems -
With rotating control; arms are positioned at 90 degrees
Rotation Control -
The main movement mechanism is provided by 24V DC Motor.
Energy / Operating Voltage -
110 / 220 - 240V AC 50/60 Hz (+/- %10) - 24V DC
Control Systems -
All inputs are opto-coupler protected. Controlled by dry contact or grounding input.
Compatiable with all access control systems that provide dry contact or grounding outputs
Speed Control -
Motor start and stop control is maintained by PWM microprocessor control sysyem
Operating Temperature -
-20° C / + 50° C
IP Rating -
IP-54
Flow Rate -
30 Passage / Minutes / Normally Standard
Operation -
Unidirectional
Remote Control
► 1 Unit, working with 23V type 12V battery.
► 433.920MHz working frequency.
( Legal ISM band for Turkey and Europe )
Separator
► Spacebar of the central portion, optionally, glass, plexiglass, to close with dekota types of material properties are available.
►Ability to shorten optional intermediate pipes.
Floor Mounting Plate
► Ease of modular installation with anti-skid bottom platform.
► Ease of installation in difficult ground conditions.
► Front and rear ramp system for easy access.
