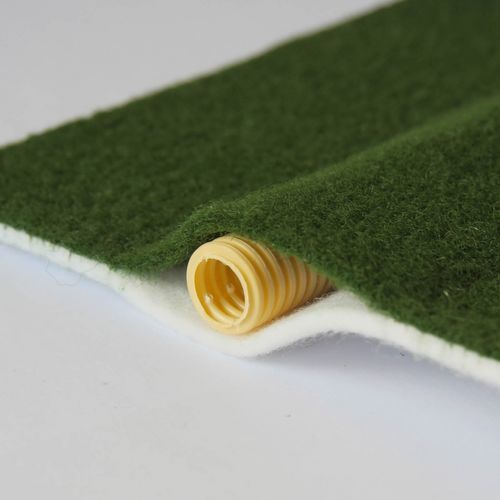

Drainage geocomposite DRAINTUBE FT/UV

with mini-drainspolypropyleneembankment

Leachate drainage on landfill slopes helps reduce the hydraulic load on the geomembrane and increase the effectiveness of the waterproofing system. In addition to drainage, the geomembrane must be mechanically protected by a DRAINTUBE® FT/UV geocomposite to prevent punctures when processing waste. This protection must withstand climatic stress (rain, wind, Ultraviolet radiation) during the entire cell filling phase. The anti-UV treatment of its filter ensures protection from UV rays for 2, 3, 4 or 5 years. Connection to the collector via the Quick Connect system The Quick Connect system directly connects the mini-drains from the DRAINTUBE® FT/UV to the main collector drain. In the event of gas drainage, it generates negative pressure in the entire system. Benefits Optimised leachate collection in the cells Reduced hydraulic load on the geomembrane Waterproofing geomembrane protected against puncture Resistance to ultraviolet radiation during the entire cell filling phase The green filter helps the site blend into the landscape
