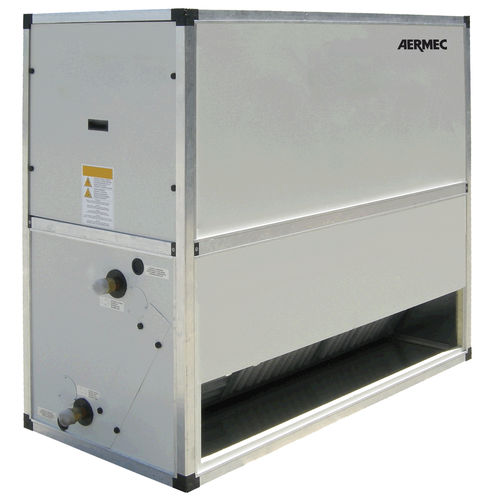

Commercial air handling unit TN

industrial

TN is a machine designed for medium-sized rooms in the commercial and industrial sectors. Cooling capacity: 15.6 ÷ 155.1 kW Heating capacity: 25.2 ÷ 334.1 kW Cooling and heating Centrifugal fan Ducted installation For two pipes plants TN is an alternative to the fan coil units when only filtering, air cooling or air heating is required. Top performance is ensured by high-efficiency copper/aluminium coils of 4 or 6 rows, that can be combined with post-heating coils of 2, 3 or 4 rows. The machine is also fitted with dual-suction centrifugal fans with forward blades for high head levels, coupled with electric motors by means of a belt and pulley with variable pitch. The air is filtered by synthetic G4 filters positioned on the suction line; they can easily be removed for maintenance and cleaning. Alternatively, the FTMxT accessory uses class F7 filters.
